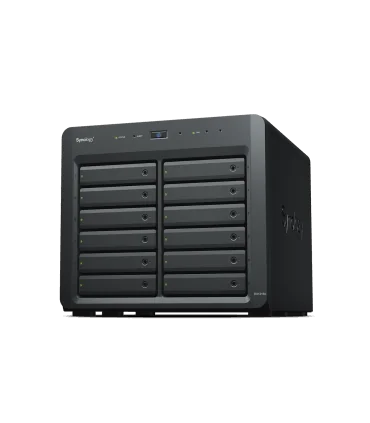

Synology Expansion Unit DX1215II

Thương hiệu:
  • Form Factor: Tower
  • Applied Models : FS series: FS1018; 19 series: DS2419+, DS2419+II; 18 series: DS3018xs; 17 series: DS3617xs, DS3617xsII; 15 series: DS3615xs, DS2415+, DS2015xs; 13 series: DS2413+; 12 series: DS3612xs; 11 series: DS3611xs, DS2411+
  • Drive Bays : 12
  • Hotswappable Drive: yes
  • RAID Management through Synology DSM
  • Expansion port: 1
Xem thêm
Chi tiết sản phẩm
DX1215II

Chi tiết

Hình dạng:
Tower
DX1215II

Hardware Specifications

Applied Models

Supports creating volumes across different units
  • FS series:FS1018
  • 19 series:DS2419+, DS2419+II
  • 18 series:DS3018xs
  • 17 series:DS3617xs, DS3617xsII
  • 15 series:DS3615xs, DS2415+, DS2015xs
  • 13 series:DS2413+
  • 12 series:DS3612xs
  • 11 series:DS3611xs, DS2411+
Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

Drive Bays 12
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
Notes It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.

External Ports

Expansion Port 1

Appearance

Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
Weight 9.02 kg

Power

Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 550 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 51.23 W (Access)
21.71 W (HDD Hibernation)
British Thermal Unit 174.69 BTU/hr (Access)
74.03 BTU/hr (HDD Hibernation)
Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Temperature

Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Others

System Fan 120 mm x 120 mm x 2 pcs
Easy Replacement System Fan
Noise Level* 27.2 dB(A)
Notes Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Certification

  • FCC
  • CE
  • BSMI
  • EAC
  • RCM
  • KC

Warranty

5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment & Packaging

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • User's Guide X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Expansion Cable: Infiniband X 1

Optional Accessories

  • 3.5" SATA HDD: HAT5300
  • 2.5" SATA SSD: SAT5200

Notes:

  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
