Synology Router RT2600ac

Thương hiệu:
Synology Router RT1900ac is a high-speed wireless router designed for homes and offices. The latest wireless technologies provide swift and reliable Wi-Fi connectivity. The revolutionary software experience is incredibly intuitive even for non-techy people. And advanced management tools enable power users to fine-tune the flow of data in the network.
Xem thêm
Sản phẩm liên quan
Mô tả
Hardware Specifications
CPU Dual core 1.7 GHz
L4/L7 Hardware Acceleration Engine
Memory 512 MB DDR3
Antenna type 4x4 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz)
LAN port
  • Gigabit (RJ-45) x 4
  • Gigabit (RJ-45) x 3 (Dual WAN)
WAN port
  • Gigabit (RJ-45) x 1
  • Gigabit (RJ-45) x 2 (Dual WAN)
External Ports
  • USB 3.0 x 1
  • USB 2.0 x 1
  • SD card reader x 1 (SDXC, SDHC)
Button and switch WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off
Appearance
Size (Height x Width x Depth) 77 mm x 280 mm x 169 mm (without antenna)
Weight 0.7 kg
Others
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 10.80 W (Access)
7.94 W (Idle)
Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
  • VCCI Class B
  • RCM
Wi-Fi Certification
  • CE
  • FCC
  • NCC
  • RCM
  • iDA
Warranty 2 Years
Wireless
IEEE 802.11ac
  • IEEE 802.11a/b/g/n/ac
  • Simultaneous dual-band Wi-Fi
  • 2.4GHz: 800Mbps
  • 5GHz: 1.73Gbps
IEEE 802.11ac wave 2
  • MU-MIMO
  • 2x2 160 MHz (contiguous 80 + 80 MHz)
  • 2x2 80 + 80 MHz (discontiguous)
Beamforming
DFS
WDS
Schedulable Wi-Fi
WPS 2.0 (Wi-Fi Protected Setup 2.0)
3G/4G Dongle & Tethering (Learn more)
Maximum MAC filters 64
Maximum connected devices 100
Note
  • In real-world testing, at least 120 devices can be concurrently connected to RT2600ac.
  • Not all of the connected 120 devices are transmitting data, some remained idle.
  • RT2600ac supports at least 100 connected devices concurrently transmitting data.
  • The numbers above are for reference only. Actual performance and behavior may depend on network environment and settings.
Network
Internet connection Dynamic IP, Static IP, PPPoE
Port forwarding Setup via manual management or UPnP
Maximum port forwarding rules 64
Maximum UPnP rules 64
Port triggering
Maximum port triggering rules 32
Minimum port triggering timeout 30s
Maximum port triggering timeout 3600s
DMZ
IPv6 IPv6 DHCP server/client, IPv6 tunneling
DHCP Server/client mode, client list, MAC address reservation
Maximum DHCP reservations 500
LAN/WLAN IGMP snooping
VPN
  • VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
  • VPN client (PPTP, OpenVPN, L2TP/IPSec)
  • VPN pass-through (PPTP, IPSec, L2TP)
Policy route, Static route, Network Address Translation (NAT), PPPoE relay
Maximum IPv4 static routes 100
Maximum IPv6 static routes 100
Diagnosis tools
  • Ping
  • Traceroute
Management
Operating system Synology Router Manager (SRM)
Free OS upgrade
Anywhere access to SRM Synology QuickConnect & Dynamic DNS (DDNS)
Operation modes Wireless Router, Wireless AP, Wireless Repeater
Wake on LAN (WOL)
WOL over QuickConnect
Maximum connected devices 100
Notification Email, SMS, push service (via DS router)
SSH
SNMP
Configuration backup & restore
User account management
Printer server Maximum printer: 1

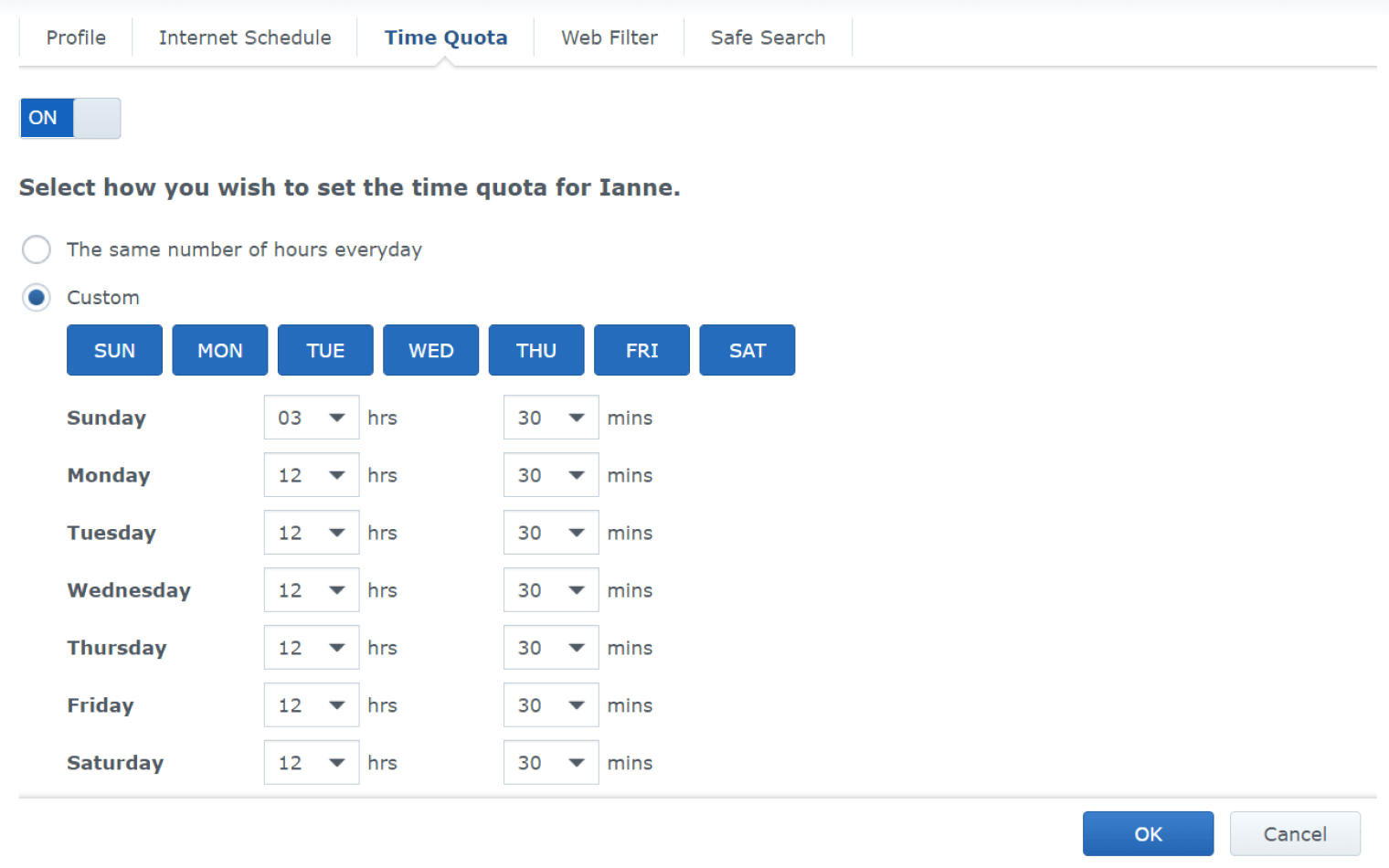

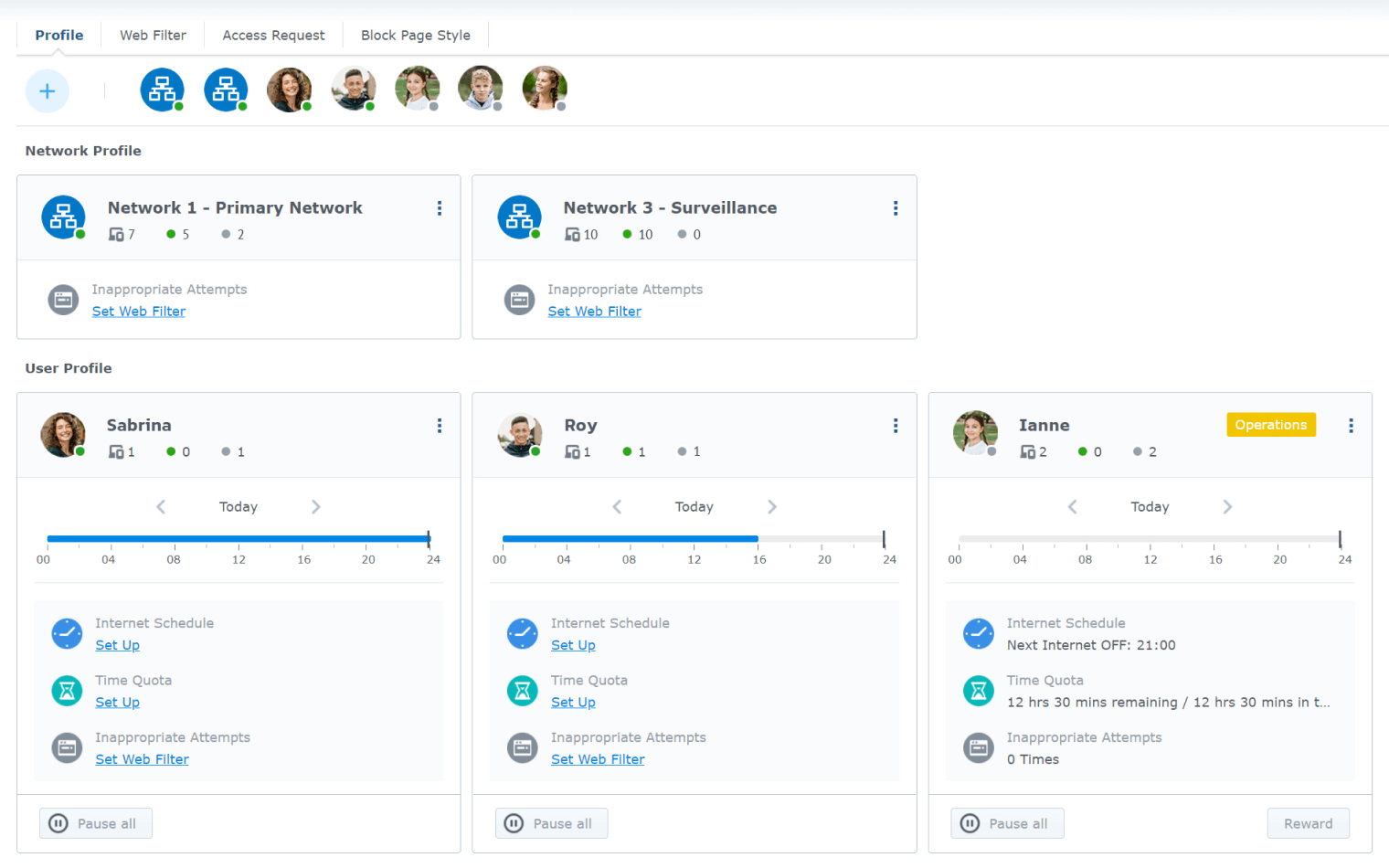

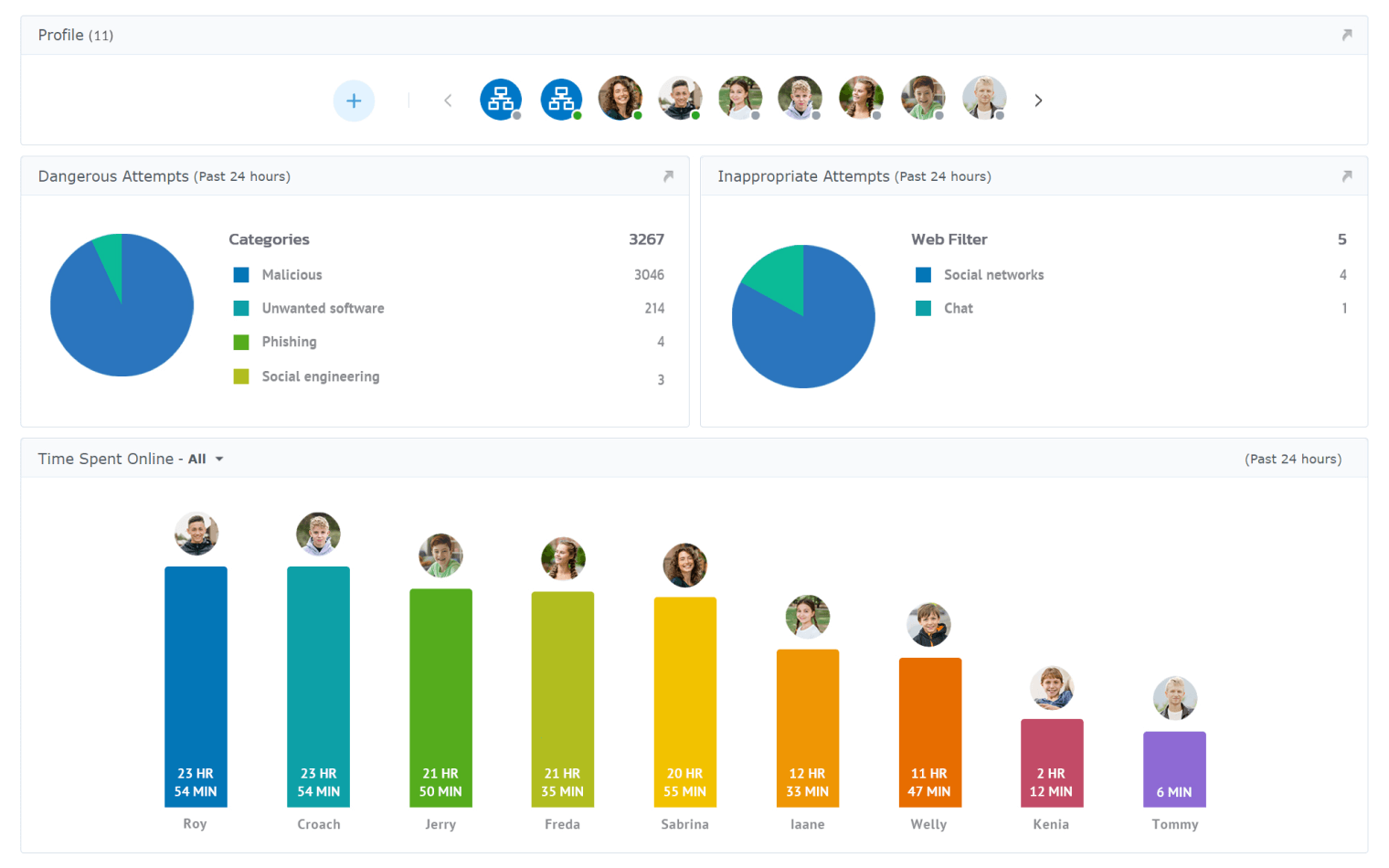

Parental Control
Maximum devices 50
Customized Internet schedule
IPv4 DNS-based web-filter with built-in database
IPv4 Customized allow/block list
Maximum blocked URLs 100
Maximum allowed URLs 100
Default policy
Traffic Control
Internet ban, device speed & priority
Application layer (L7) quality of service (QoS)
Maximum device rules 64
Maximum application rules per device 32

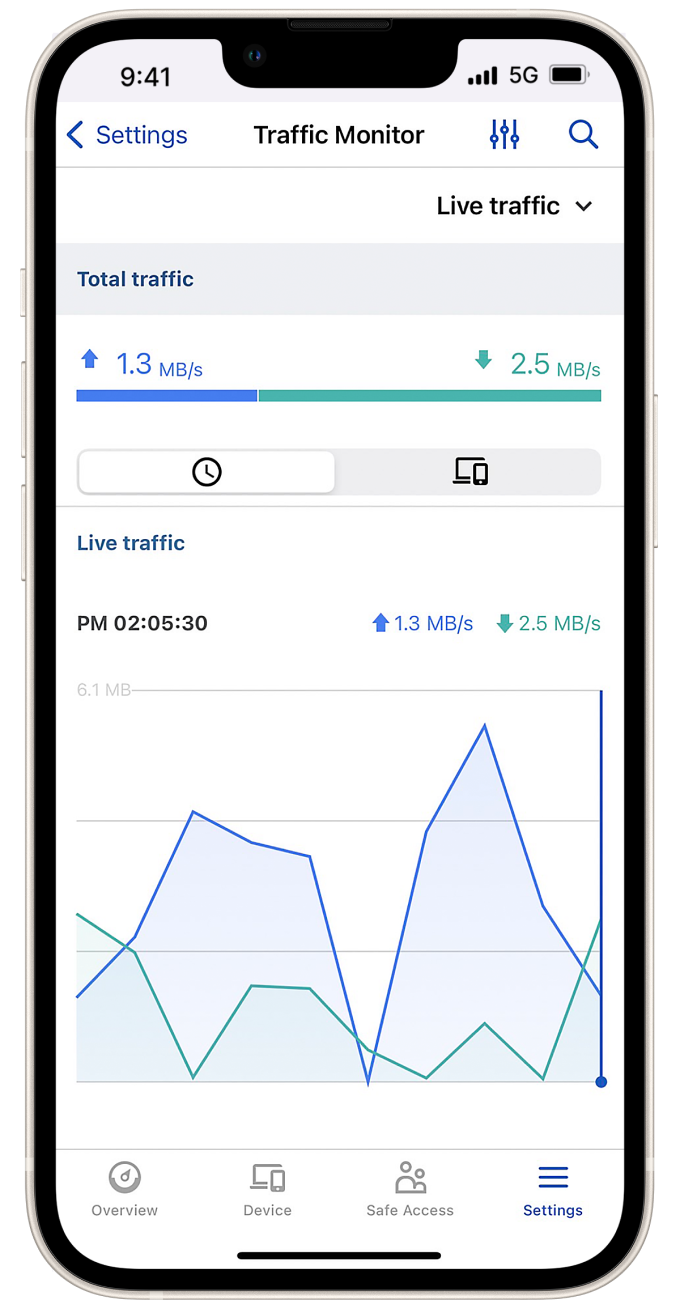

Traffic Monitor
Live view
Historical statistics Daily, Weekly, Monthly, Annual
Website history

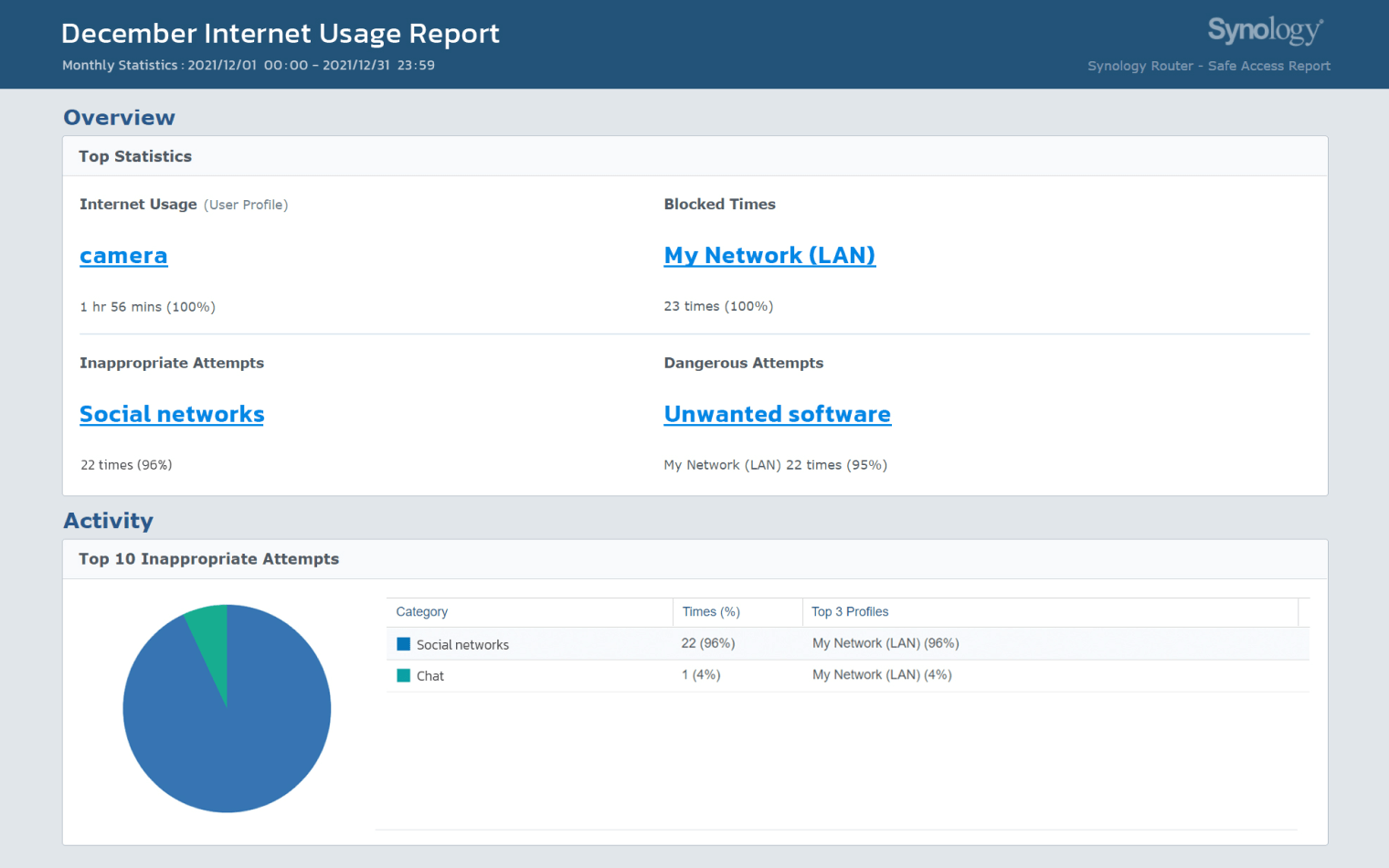

Traffic Report
Schedulable
Traffic analysis period Daily, Weekly, Monthly, Annual
Export formats .CSV, .HTML
Security
Wi-Fi encryption WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Wi-Fi MAC address filter
Firewall/SPI Firewall
DoS Protection
Auto block
SSL certificate
Security Advisor
Mobile Apps
DS cloud (Android/iOS)
DS get (Android/iOS)
DS file (Android/iOS)

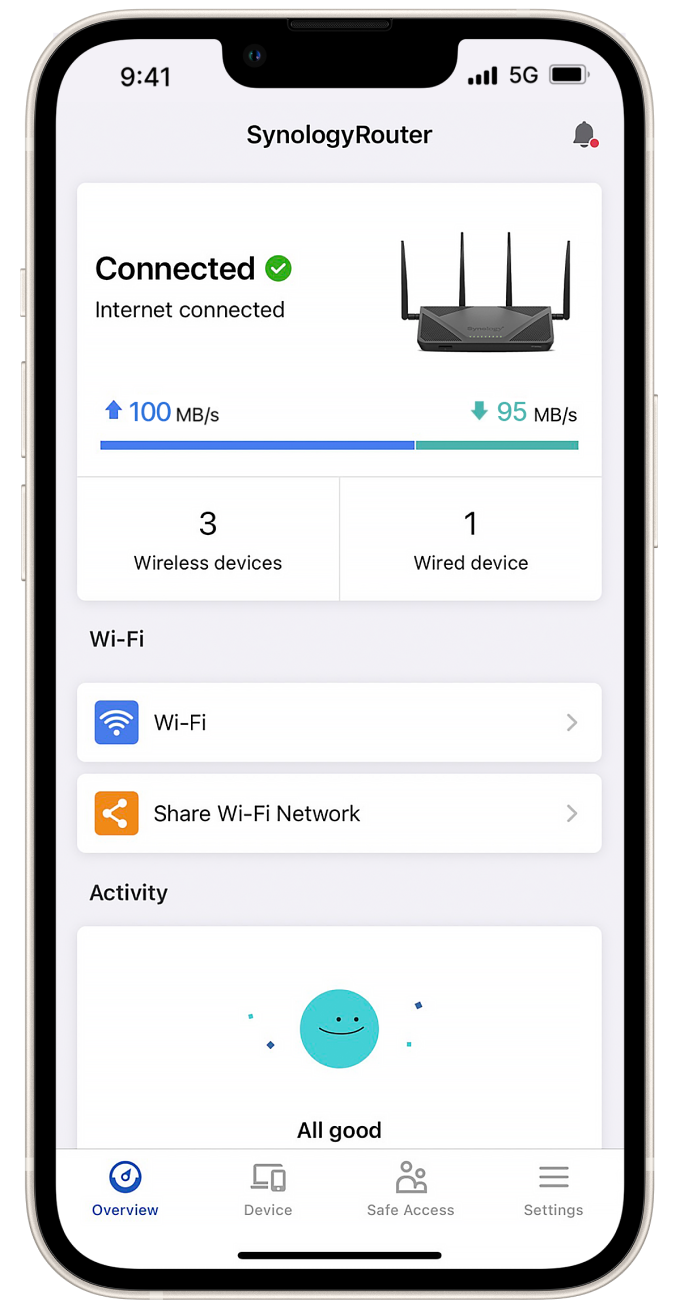

DS router (Android/iOS)
  • Network traffic overview

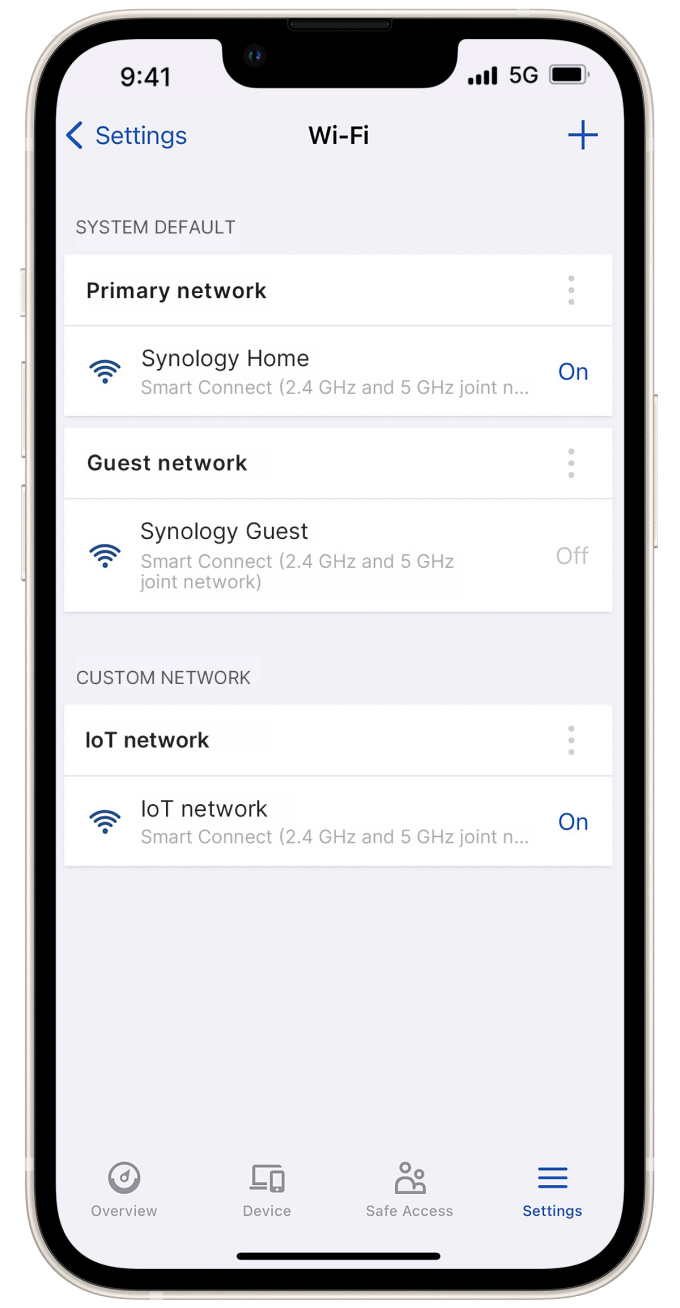

  • Wi-Fi management

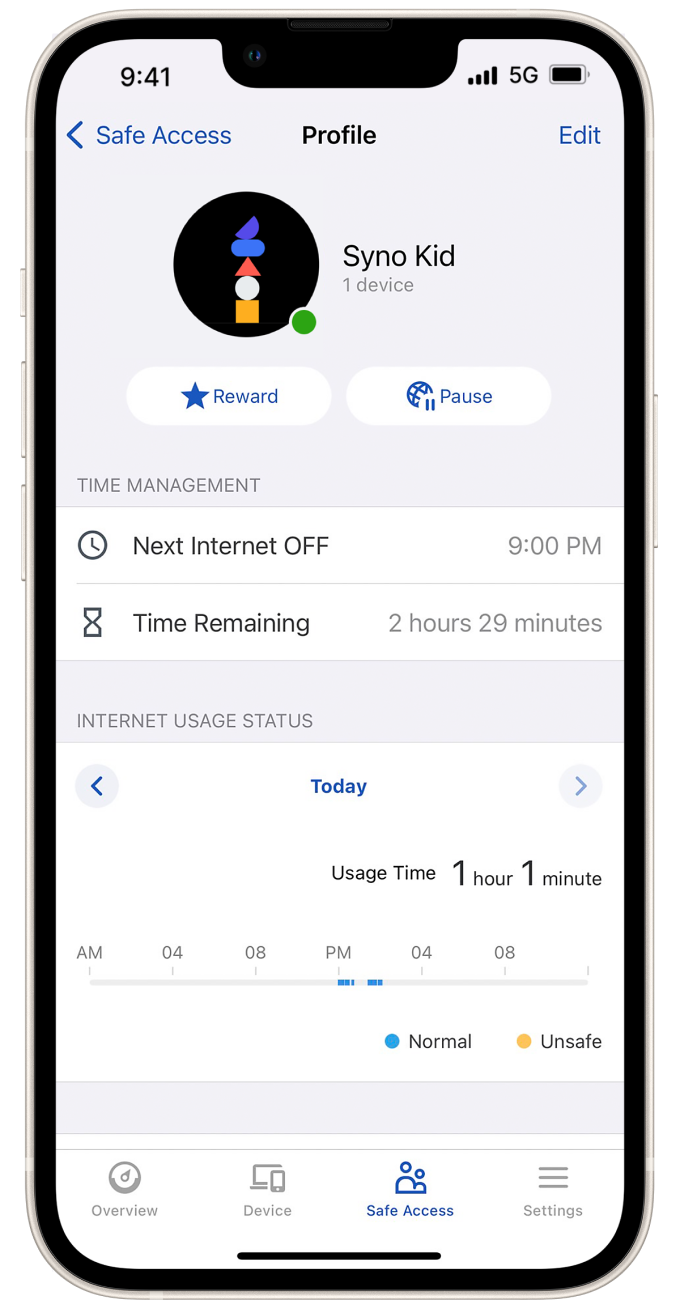

  • Parental Control
  • Traffic Control
  • Network security (firewall, port forwarding, Internet ban)
  • Wake on LAN
VPN Plus (Android/iOS)
USB/SD Card File Service
File System EXT4, FAT, NTFS, HFS+
Access support
  • File explorer (via LAN only)
  • Web browsers: Chrome™, Firefox®, Internet Explorer®: 8 onwards, Safari® 7 onwards, Safari (iOS® 7 onwards on iPad®), Chrome (Android 4.0 onwards on tablets)
  • Mobile device: DS file
Protocol support Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV
Apple Time Machine
Shared Folder privileges
Storage hibernation
Package Center
Cloud Station Server Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files.
Maximum Concurrent File Transfers 128
Note Cloud Station ShareSync is not supported
DNS Server Helps users find and translate domain names into IP addresses
Download Station Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum concurrent download tasks 50
Maximum concurrent BT download tasks 20
Media Server (DLNA/UPnP®)
  • Media indexing
  • DLNA certified
  • PS3/PS4/Xbox 360/Xbox One supported
RADIUS Server Provides centralized authentication, authorization, and accounting for wireless network access
VPN Plus Server Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — WebVPN, SSL VPN, SSTP, OpenVPN, L2TP over IPSec, and PPTP.
Maximum Connections 20
Site-to-Site VPN
Site-to-Site Tunnels 10
Intrusion Prevention (Beta) Greatly enhance the security of your router with IDS and IPS systems, designed to safeguard your network against internet threats.
Intrusion Detection System (IDS)
Intrusion Prevention System (IPS)
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit
  • Antenna x 4
  • AC Power Adapter
  • RJ-45 LAN Cable
  • Quick Installation Guide
