Synology DiskStation DS416slim

Form Factor: Tower
CPU: Marvell Armada 385 88F6820, 32-bit, Dual Core 1GHz
Memory: 512 MB DDR3
Drive Bays: 4 (HDD not included )
Hot swappable Drive: Yes
External Ports: RJ-45 1GbE LAN X 2; USB 3.0 X 2
Maximum IP cam (License required): 8 (including 2 Free License)
Warranty: 2 years

Tùy chọn mua thêm

HZe chuẩn (dán mặt phẳng)

Bạn cũng có thể thích

Mô tả

Hardware Specs

CPU	CPU Model	Marvell Armada 385 88F6820
	CPU Architecture	32-bit
	CPU Frequency	Dual Core 1.0 GHz
	Hardware Encryption Engine
Memory	System Memory	512 MB DDR3
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage	Drive Bays	4
	Compatible Drive Type* (See all supported drives)	2.5" SATA HDD (up to 12.5 mm drive height) 2.5" SATA SSD
	Maximum Internal Raw Capacity	30.72 TB (7.68 TB drive x 4) (Capacity may vary by RAID types)
	Maximum Single Volume Size*	16 TB
	Hot Swappable Drive
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum single volume size is not directly related to the maximum raw capacity. (Learn more)
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
	USB 3.0 Port	2
File System	Internal Drives	EXT4
	External Drives	EXT4 EXT3 FAT NTFS HFS+* exFAT*
	Notes	HFS+ is read only, max 2TB volume size. exFAT Access is purchased separately in Package Center.
Appearance	Size (Height x Width x Depth)	120 mm x 105 mm x 142 mm
	Weight	0.66 kg
Others	System Fan	60 mm x 60 mm x 1 pcs
	Fan Speed Mode	Cool Mode Quiet Mode Low-power Mode
	Easy Replacement System Fan
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	20.3 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	30 W
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	17.17 W (Access) 11.63 W (HDD Hibernation)
	British Thermal Unit	58.63 BTU/hr (Access) 39.71 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10JFCX hard drive(s). Noise Level Testing Environment: Fully loaded with WD 1TB WD10JFCX hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%.
Temperature	Operating Temperature	5°C to 40°C (40°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	EAC CCC RCM KC FCC CE BSMI
Warranty	2 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Welcome Note X 1 Accessory Pack X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 2

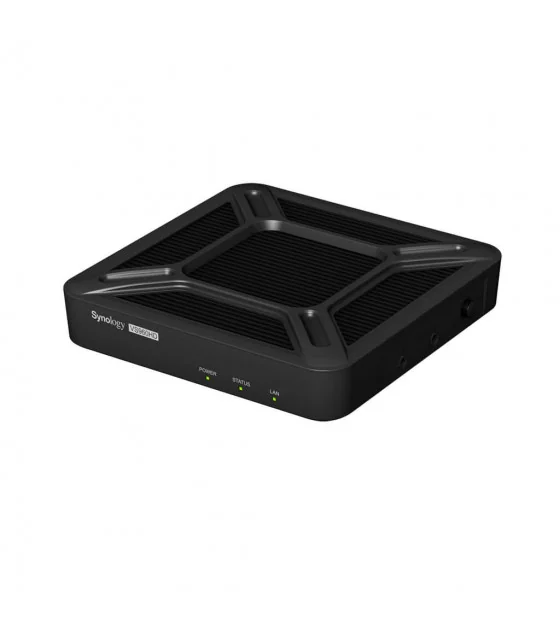

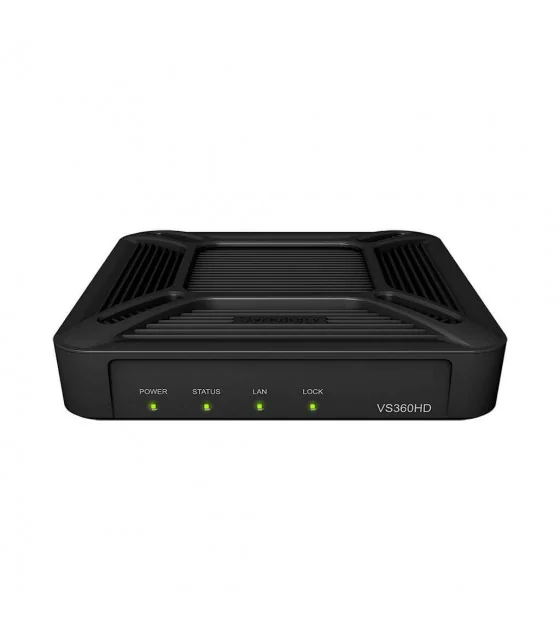

Optional Accessories	Surveillance Device License Pack VS360HD VS960HD

Software Specs

DSM Specifications
Storage Management	Maximum Internal Volume Number	64
	Maximum iSCSI Target Number	10
	Maximum iSCSI LUN	10
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5
File Services	File Protocol	CIFS/AFP/NFS/FTP/WebDAV
	Maximum Concurrent CIFS/AFP/FTP Connections	100
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
Account & Shared Folder	Maximum Local User Accounts	1,024
	Maximum Local Groups	256
	Maximum Shared Folder	256
	Maximum Shared Folder Sync Tasks	2
Log Center	Syslog Events per Second	100
General Specifications	Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Internet Explorer 10 onwards Safari 10 onwards Safari (iOS 10 onwards) Chrome (Android 6.0 onwards)
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Add-on Packages view the complete package list
Synology Chat	Maximum Users	10
	Notes	The number of concurrent HTTP connections for Synology Chat was configured to the maximum. CPU and RAM usage were both under 80% when the number of maximum users was reached. For tested models with expandable memory, the maximum amount of RAM was installed.
Cloud Station Server	Recommended Number of Hosted Files	100,000
	Recommended Number of Concurrent Sync Clients	128 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Notes	The maximum number of concurrently connected devices refers to the maximum number of devices that can remain connected at the same time. The maximum number of hosted files refers to the maximum number of files that can be indexed and hosted by the Cloud Station Server service. RAM expansion was not used during testing. Non-encrypted shared folders were used during the aforementioned testing.
Download Station	Maximum Concurrent Download Tasks	50
exFAT Access (Optional)
Media Server	DLNA Certification
Moments	Facial Recognition
Surveillance Station	Maximum IP cam (Licenses required)	8 (including 2 Free License) (See All Supported IP Cameras)
	Total FPS (H.264)*	240 FPS @ 720p (1280x720) 150 FPS @ 1080p (1920x1080) 100 FPS @ 3M (2048x1536) 40 FPS @ 5M (2591x1944)
	Total FPS (MJPEG)*	150 FPS @ 720p (1280x720) 75 FPS @ 1080p (1920x1080) 50 FPS @ 3M (2048x1536) 25 FPS @ 5M (2591x1944)
	Notes	Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.
Synology Drive	Recommended Number of Hosted Files	100,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Recommended Number of Concurrent Sync Clients	200 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Notes	Exceeding the limits above may result in longer response time in file operations. EXT4 file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Maximum Users	100
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. CPU and RAM usage were both under 80% when the number of maximum users was reached. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station	Video Transcoding	Group 2 (See more)
VPN Server	Maximum Connections	10
